Venous thromboembolism (VTE)

Introduction to venous thromboembolism

The venous system is the section of the circulatory system that uses veins to return the deoxygenated blood to the heart and lungs. Occasionally, irregularities in the wall of a vein especially in areas of slow flow, can cause a blood clot, or thrombus, to form [1].

VTE is an underdiagnosed preventable medical condition that can cause disability and death [2]. VTE includes deep vein thrombosis (DVT) and pulmonary embolism (PE).

Deep vein thrombosis

Deep vein thrombosis

Deep vein thrombosis (DVT) is a medical condition in which a blood clot forms in a deep vein usually in the lower leg, thigh, or pelvis. Once the clot is formed, additional fibrin and red blood cell deposits can cause the thrombus to grow inside the vein and stops blood from flowing easily through the vein [1,2].


DVT is preventable and treatable if discovered early [2].

Pulmonary embolism

The most serious complication of DVT happens when a part of the clot breaks off and travels through the bloodstream to the lungs, causing a blockage called pulmonary embolism (PE).

If the clot is small, and with appropriate treatment, people can recover from PE. However, there could be some damage to the lungs. If the clot is large, it can stop blood from reaching the lungs and is fatal [2].

Pulmonary embolism


  • Every 37 seconds someone in the western world dies from a venous thromboembolism (VTE) [3]

  • 1 in 4 people die from causes related to blood clots [3]

  • 55%-60% of VTE cases occur during or following hospitalization [3]

  • VTE is the #1 cause of preventable deaths in hospital [3]

  • More people die from blood clots each year than the total number of people who lose their lives annually due to AIDS, breast cancer, and motor vehicle crashes combined [3]

There are a variety of risk factors that contribute to the development of deep vein thrombosis:

  • Surgery, particularly surgery of the hip or leg, or abdominal surgery [4]
  • Trauma or bone fracture [4]
  • A long period of bed rest or sitting for a long time (e.g., on an airplane or in a car) [4]
  • Cancer [4]
  • Pregnancy [4]
  • Birth control pills or hormones taken for symptoms of menopause [4]
  • COVID-19: 7-39% of patients with COVID-19 infection who require mechanical ventilation have acute PE/DVT [5].

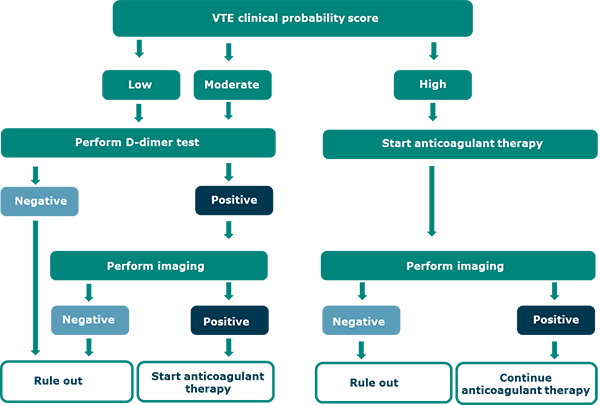

Diagnostic strategies for VTE are based on assessment of the pretest probability for individual patients, which provides an estimate of the expected prevalence of VTE at a population level [6].

For patients at low (unlikely) or intermediate VTE risk, using D-dimer* as the initial test reduces the need for diagnostic imaging [7].

For patients at high (likely) VTE risk, imaging is warranted.

For PE diagnosis, ventilation-perfusion scanning, and computed tomography pulmonary angiography (CTPA) are the most validated tests, whereas lower or upper extremity DVT diagnosis uses ultrasonography (ultrasound) [6].

* in combination with clinical probability assessment


Figure1: Strandberg K. The clinical use of D-dimer assay* [8].


1. Esmon CT, Basic Mechanisms and Pathogenesis of Venous Thrombosis, Blood Rev. 2009 Sep; 23(5): 225–229
2. Centers for Disease Control and Prevention, Accessed Oct 2020
3. Thrombosis UK, Oct 2020
4. Stanford healthcare. Accessed Oct 2020
5. American Society of Hematology. Accessed Oct 2020
6. Lim W et al. American Society of Hematology 2018 guidelines for management of venous thromboembolism: diagnosis of venous thromboembolism. Blood Adv. 2018; 27,22.
7. Konstantinides S et al. Guidelines for the diagnosis and management of acute pulmonary embolism developed in collaboration with the European Respiratory Society (ERS), Eur Heart J l 2019.
8. Strandberg K. The clinical use of -dimer assay,, June 2017
